PV-ezRack®/MOUNTING SYSTEM/Roof Series/Flat Roof/SolarTripod™ Lite
SolarTripod™
Lite

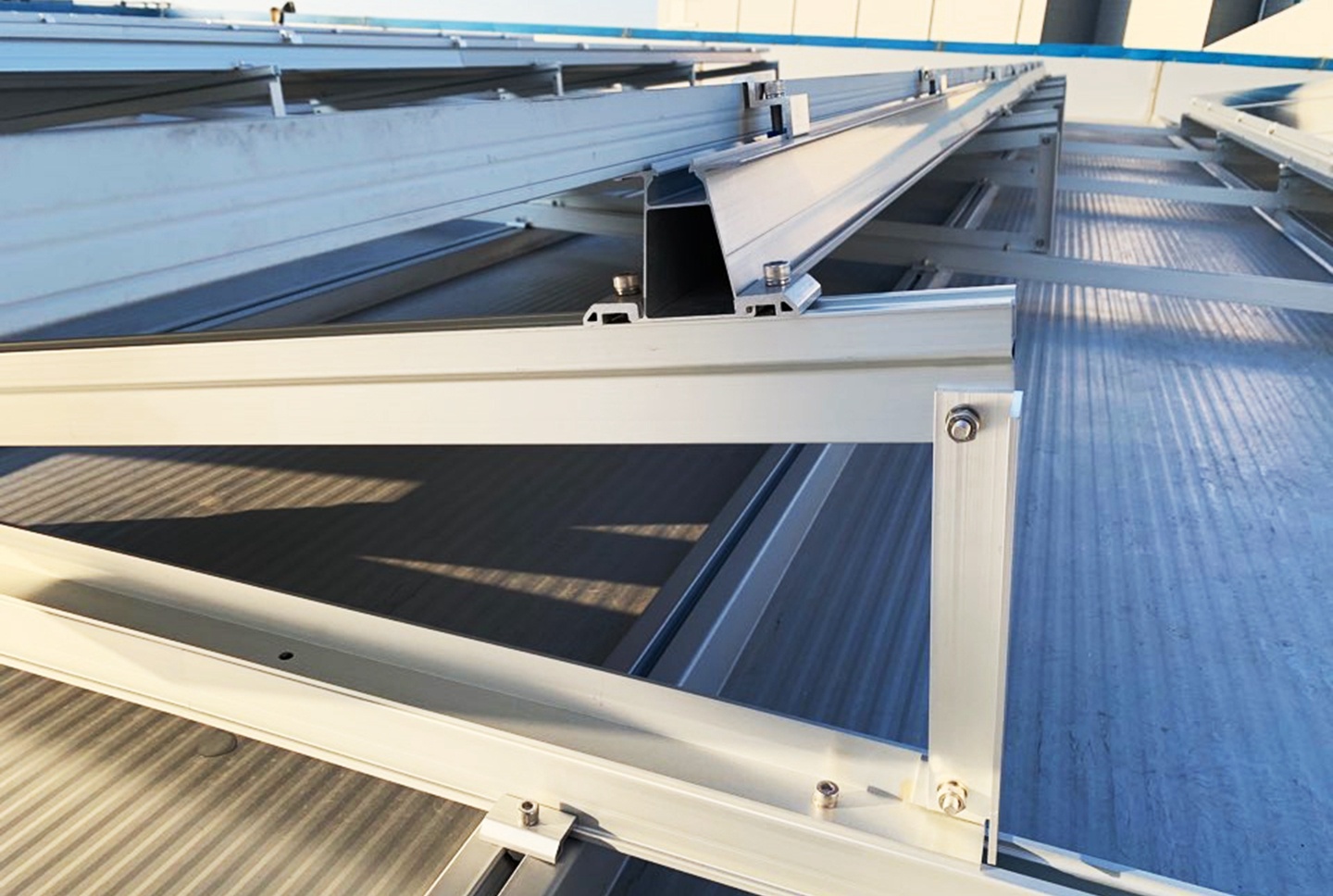

Residential and Commercial Flat Roof Mounting System
Features
The PV-ezRack® SolarTripod™ Lite provides
- Pre-assembled supports
- Pre-installed Rail Clamps
- Lightweight compared the standard SolarTripod™
- Cost-Effective Mounting system
- Suitable for residential and commercial flat roofs.
- Fast Installation
- Structural grade aluminium alloy to ensure excellent corrosion resistance
Built To Last
The use of aluminium alloy ensures an aesthetic appearance and is lightweight which gives to ease of installation and freight.
Product Details |
Customised |
|
Product Details |
Key Benefits
Fast and easy Installation
The Tripod Lite supports are delivered with pre-set tilt angles, pre-assembled, which include the Rail Clamps pre-installed at the right position. This allows a quick and easy installation.
Cost Effective
The combination of simple L-Shaped aluminium profiles with Z-Module channels in the support and the optimised ECO-Rail results in cost reduction without compromise in structural integrity.
Grounding/Earthing Function
The Rail clamps include the earthing pins, which provide continuity between rail and support. On the ECO-Rail the standard earthing clips and lugs can be used.
Universal application
Standardised components are suitable for 60cell as well as for 72cell panels with the base length of 1350mm or 1700mm and with the tilt angle of 15° or 30°. Customised lengths and tilt angles are available on order.
Videos
Downloads
Search result: documents found
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy PVezRack Cap for Elite and ECO-Rail Datasheet | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy Kit for SolarRoof with ECO-Rails with Akashi Clamp 30-46mm Datasheet | Download |
| Clenergy PVezRack Grounding Clip for Akashi Clamp Datasheet | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack Elite Rail Datasheet | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| Module Inter and End Clamp – Security Series Datasheet | Download |
| MT-Rail Cable Tray Cover Datasheet | Download |
| MT-Rail Cable Tray Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| SolarTripod Lite Installation Guide | Download |
| SolarTripod Lite Brochure | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy PVezRack Cap for Elite and ECO-Rail Datasheet | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy Kit for SolarRoof with ECO-Rails with Akashi Clamp 30-46mm Datasheet | Download |
| Clenergy PVezRack Grounding Clip for Akashi Clamp Datasheet | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack Elite Rail Datasheet | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| Module Inter and End Clamp – Security Series Datasheet | Download |
| MT-Rail Cable Tray Cover Datasheet | Download |
| MT-Rail Cable Tray Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| SolarTripod Lite Installation Guide | Download |
| SolarTripod Lite Brochure | Download |
| SolarTripod Lite Brochure | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy PVezRack Cap for Elite and ECO-Rail Datasheet | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy Kit for SolarRoof with ECO-Rails with Akashi Clamp 30-46mm Datasheet | Download |
| Clenergy PVezRack Grounding Clip for Akashi Clamp Datasheet | Download |
| Clenergy PVezRack Elite Rail Datasheet | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| Module Inter and End Clamp – Security Series Datasheet | Download |
| MT-Rail Cable Tray Cover Datasheet | Download |
| MT-Rail Cable Tray Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| SolarTripod Lite Installation Guide | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
Components
Inter Clamp
ER-IC-ST
End Clamp
ER-EC-ST
Rail Clamp for ECO-Rail with Grounding/Earthing Pins
RC-ECO/G

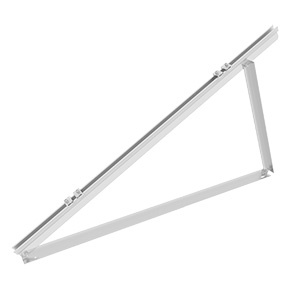

Support for SolarTripod Light, Single, with Grounding Rail Clamp for ECO
S-TRIL-S/G
ECO Rail
ER-R-ECO
Accessories
Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape
EZ-CC-PV/2/L
Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape
EZ-CC-PV/4/L
Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly
IS-SR265/111
Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly, Black Anodized
IS-SR265/111/B
Angle Bracket for Isolator Shade, 260 mm Length
AB-SR/IS/260
Angle Bracket for Isolator Shade, 260 mm Length, Black Anodized
AB-SR/IS/260B
MT-Rail Cable Tray, 40*40*2560 mm
EZ-CT-40/40/2560
Cover for MT-Rail Cable Tray, length 855mm
CO-MT/855
