PV-ezRack®/DFendr – Solar Skirt
DFendr - Solar Skirt
PV-ezRack®DFendr - Solar Skirt is a mounting accessory to keep birds, wind-blown debris and leaves away from the solar PV system on roofs.

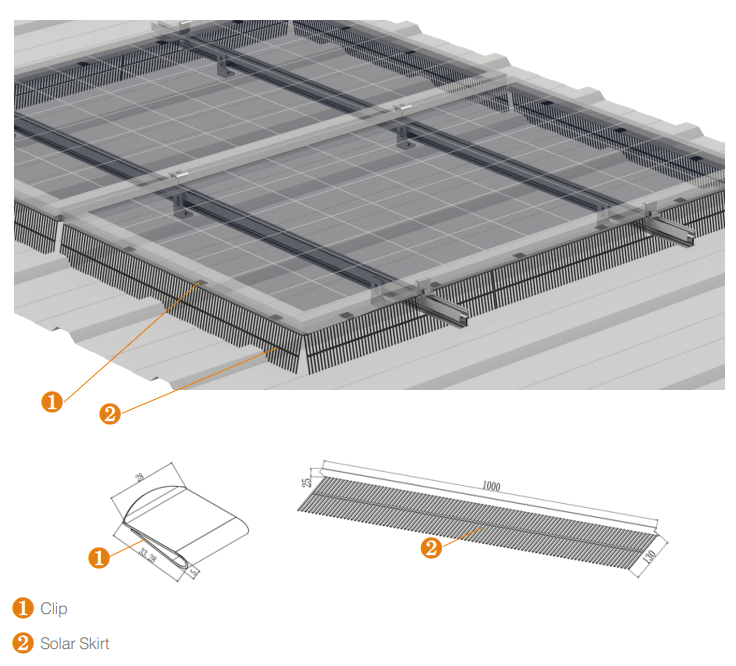

System Overview
Considering the height (130 mm) and flexibility of Solar Skirt, it is recommended to use solar skirt only for the gap 100 to 130 mm between underside of the PV panel and roof.
Most of PV-ezRack interfaces can provide required gap.
Tile Roof Interfaces:
- ER-I-01
- ER-I-01/EZC/ECO
- ER-I-01/CS
- ER-I-51
- ER-I-23
- ER-I-26
Penetrative Tin Roof Interfaces:
- ER-I-05/EZC/ECO
- ER-I-25
Non-penetrative Tin Roof Interfaces:
- Klip-lok bracket with Cross Connection Clamp (EZ-AD-C43)
Product Details |
Customised |
|
Product Details |
Key Benefits
Quick and Easy Installation / Protect your Solar Panel
Using Polyamide, (nylon) as the main material of the Solar Skirt, the product is flexible and can be cut to specification. We use clips to fix the solar skirt to avoid penetration on the solar panel frame, making the solution quite versatile. The strips of Solar Skirt can effectively block the intrusion of birds, small rodents, other debris and leaves.
Excellent UV Resistance
100% recyclable UV resistance Nylon makes the solar skirt built to last and more cost-effective.
Videos
PVezRack - DFendr Installation Guide
Downloads
Search result: documents found
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack DFendr Solar Skirt Brochure | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack DFendr Solar Skirt Brochure | Download |
| Clenergy PVezRack DFendr Solar Skirt Brochure | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
Components

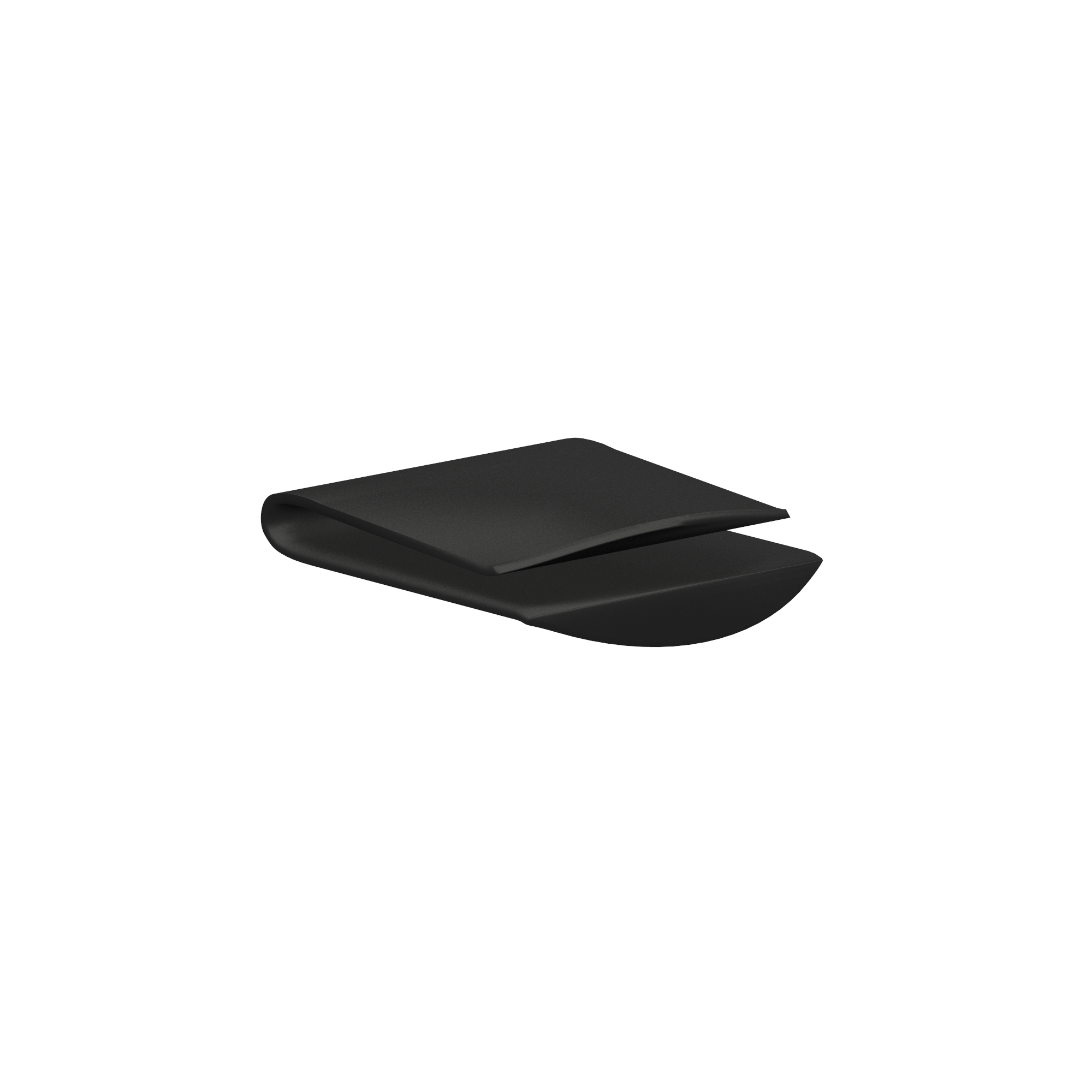

PV-ezRack® DFendr - Solar Skirt Clip for PV Panels
EZ-SC-PV

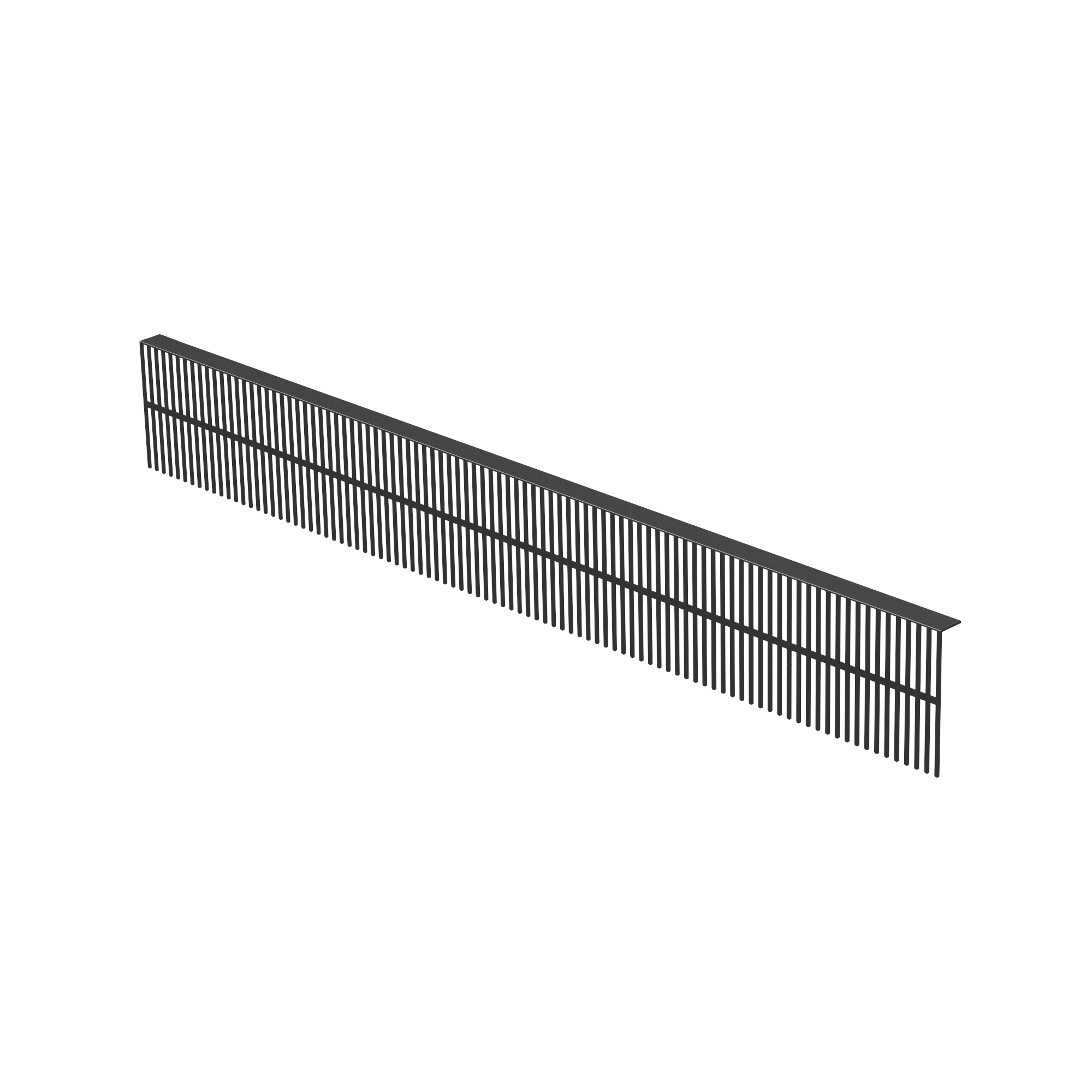

PV-ezRack® DFendr - Solar Skirt for PV Panels
EZ-SS-PV
