PV-ezRack®/MOUNTING SYSTEM/Roof Series/Flat Roof/ComT 2.0
ComT 2.0
Tilt Mounting System for PV Installation on Residential or Commercial Flat Tin Roofs
Built To Last
Compared to the previous version, ComT 2.0 introduces a single fixing of each front and rear leg for faster installation but does not affect system structural capacity. Different tilt angles of legs are available for ComT 2.0.

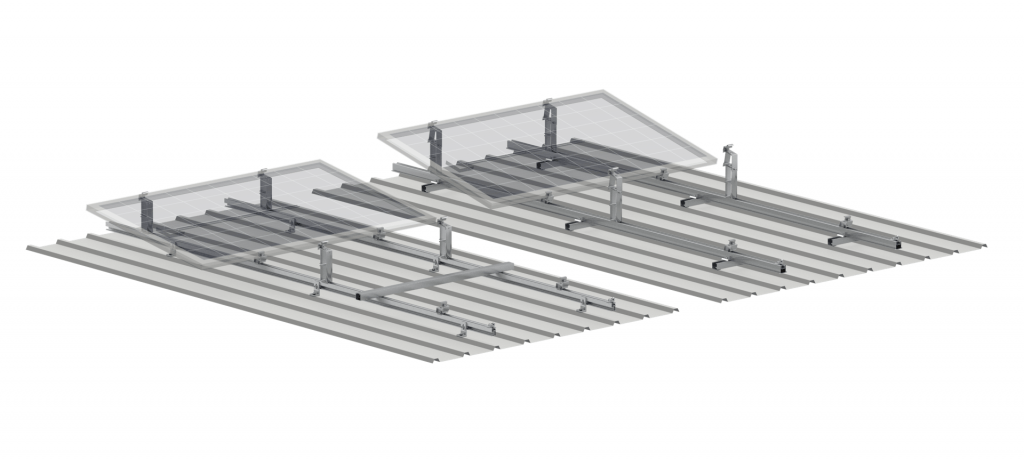

The Clenergy PV-ezRack ComT 2.0 is a universal and fast mounting system for PV installation on all common commercial tin roofs. With its flexible and scalable design, it enables perfect utilisation of roof surface available.
Available Tilt Angles
- 5°
- 10°
- 15°
Available Orientations
- North facing
- South facing
- East-West facing
Compatibility
With the ComT 2.0 system, the PV solar panels can generate their maximum output.
It is a universal and fast mounting system for PV installation for all common tin roofs, and one can do so using the Clenergy universal klip-lok clamp.
You can use different rails and clamps to fasten the solution to the flat tin roof. Watch the videos to see install examples.

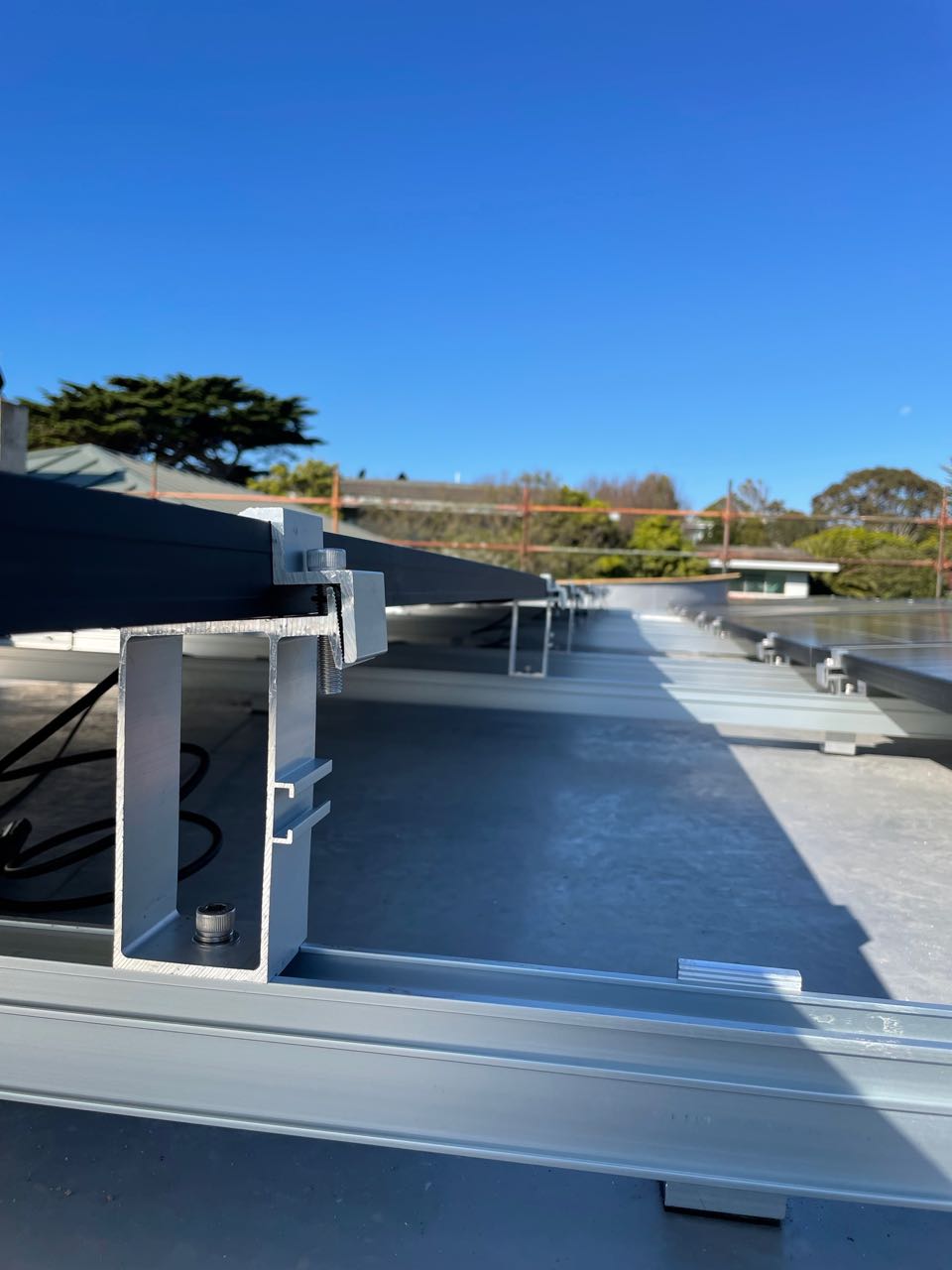

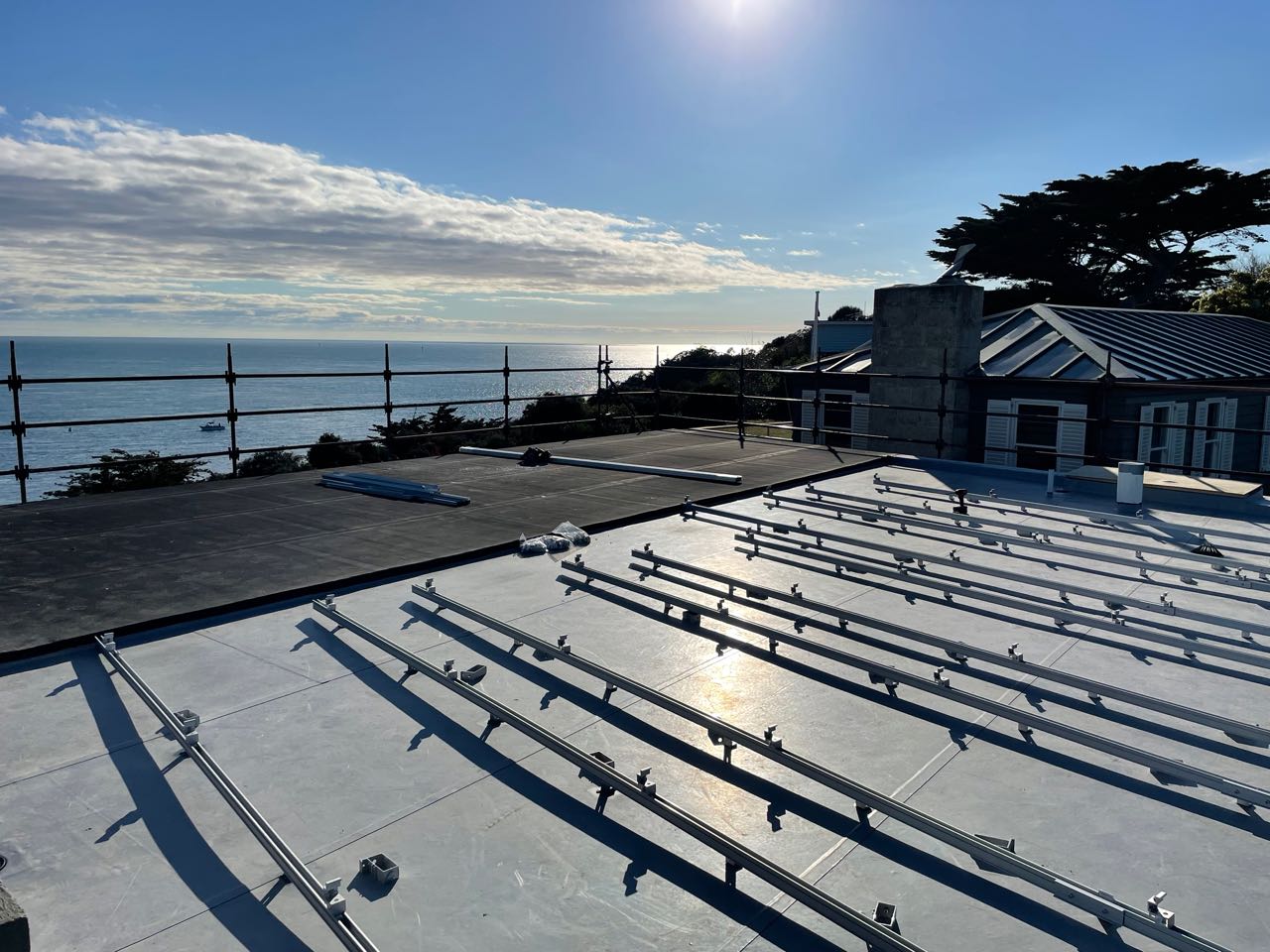

Image Courtesy: Off-Grid Energy Australia
Product Details |
Customised |
|
Product Details |
Key Benefits
Easy and Quick Installation
Highly pre-assembled legs enable easy and fast installation. With only one Z-Module fixing of each leg, the legs can easily and quickly click into the slot of Rails at any given points. The storage space is greatly reduced due to the innovative 15° Rear Leg Extension, thereby saving the cost of warehouse management.
Optimize Energy Output
The Legs can mount PV panels that width up to 1200 mm and length up to 2400 mm. And with 5°, 10° and 15° tilt angles options, PV-ezRack ComT 2.0 can offer optimized energy output.
Two Optional Solutions
The solution using MT Rail in conjunction with T-Rails and Legs is specially developed for tin roofs with a large purlin span up to 3 m. And the other one using our popular L-feet, ECO Rails and new Legs offers flexible height.
Universal
The adjustable clamps can mount framed PV panels that height from 30 to 46 mm. And with Clenergy various frameless clamps, PV-ezRack ComT can mount every size of frameless or thin film panels.
Videos
Clenergy PVezRack ComT 2.0 Installation Video
Downloads
Search result: documents found
| Clenergy PVezRack ECO Rail Datasheet | Download |
| Clenergy PVezRack SolarRoof Tin Interface Assembly Datasheet | Download |
| Clenergy PV-ezRack ComT 2.0 10° Front and Rear Legs V2 Datasheet V1.0 | Download |
| Clenergy PV-ezRack ComT 2.0 15° Front and Rear Legs Datasheet | Download |
| Clenergy PV-ezRack ComT 2.0 5° Front and Rear Legs Datasheet | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy PVezRack Cap for Elite and ECO-Rail Datasheet | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy PVezRack Grounding Lug Packed in Biodegradable Bag Datasheet | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack Elite Rail Datasheet | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| PVezRack ComT 2.0 / Commercial Solar Mounting System Brochure | Download |
| Clenergy PVezRack Comt2.0 5°, 10° and 15° Installation Guide | Download |
| Clenergy PVezRack ECO Rails Black Anodised Datasheet | Download |
| Clenergy PVezRack ECO Rail Datasheet | Download |
| Clenergy PVezRack SolarRoof Tin Interface Assembly Datasheet | Download |
| Clenergy PV-ezRack ComT 2.0 10° Front and Rear Legs V2 Datasheet V1.0 | Download |
| Clenergy PV-ezRack ComT 2.0 15° Front and Rear Legs Datasheet | Download |
| Clenergy PV-ezRack ComT 2.0 5° Front and Rear Legs Datasheet | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy PVezRack Cap for Elite and ECO-Rail Datasheet | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy PVezRack Grounding Lug Packed in Biodegradable Bag Datasheet | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack Elite Rail Datasheet | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| PVezRack ComT 2.0 / Commercial Solar Mounting System Brochure | Download |
| Clenergy PVezRack Comt2.0 5°, 10° and 15° Installation Guide | Download |
| Clenergy PVezRack ECO Rails Black Anodised Datasheet | Download |
| PVezRack ComT 2.0 / Commercial Solar Mounting System Brochure | Download |
| Clenergy Pv-ezRack Product Catalogue | Download |
| Clenergy PVezRack ECO Rail Datasheet | Download |
| Clenergy PVezRack SolarRoof Tin Interface Assembly Datasheet | Download |
| Clenergy PV-ezRack ComT 2.0 10° Front and Rear Legs V2 Datasheet V1.0 | Download |
| Clenergy PV-ezRack ComT 2.0 15° Front and Rear Legs Datasheet | Download |
| Clenergy PV-ezRack ComT 2.0 5° Front and Rear Legs Datasheet | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy PVezRack Cap for Elite and ECO-Rail Datasheet | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy PVezRack Grounding Lug Packed in Biodegradable Bag Datasheet | Download |
| Clenergy PVezRack Elite Rail Datasheet | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| Clenergy PVezRack ECO Rails Black Anodised Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack Comt2.0 5°, 10° and 15° Installation Guide | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
Components

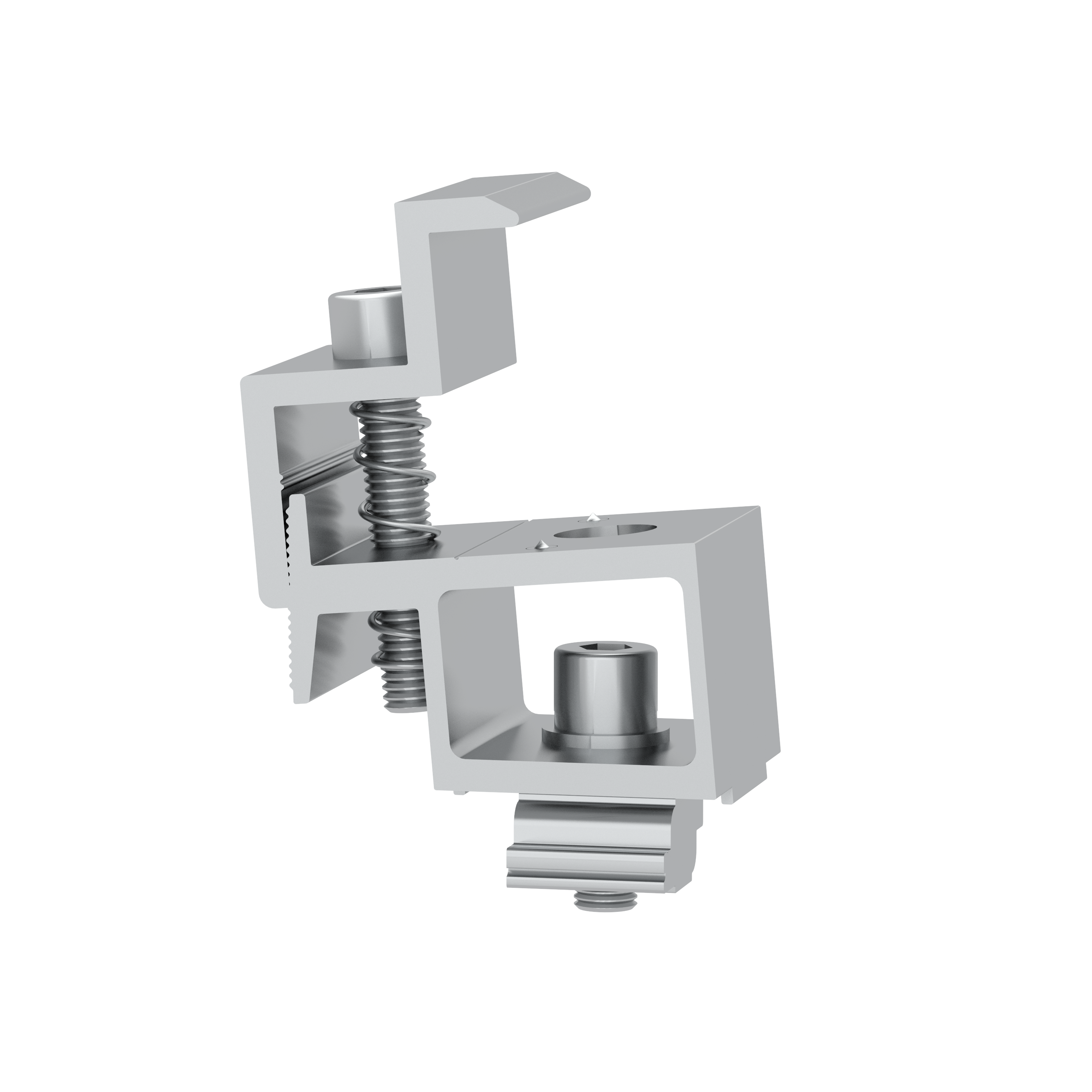

Front Leg Assembly, 5°, with Z-Module and Grounding Pins
FL-COMT/Z/G/5

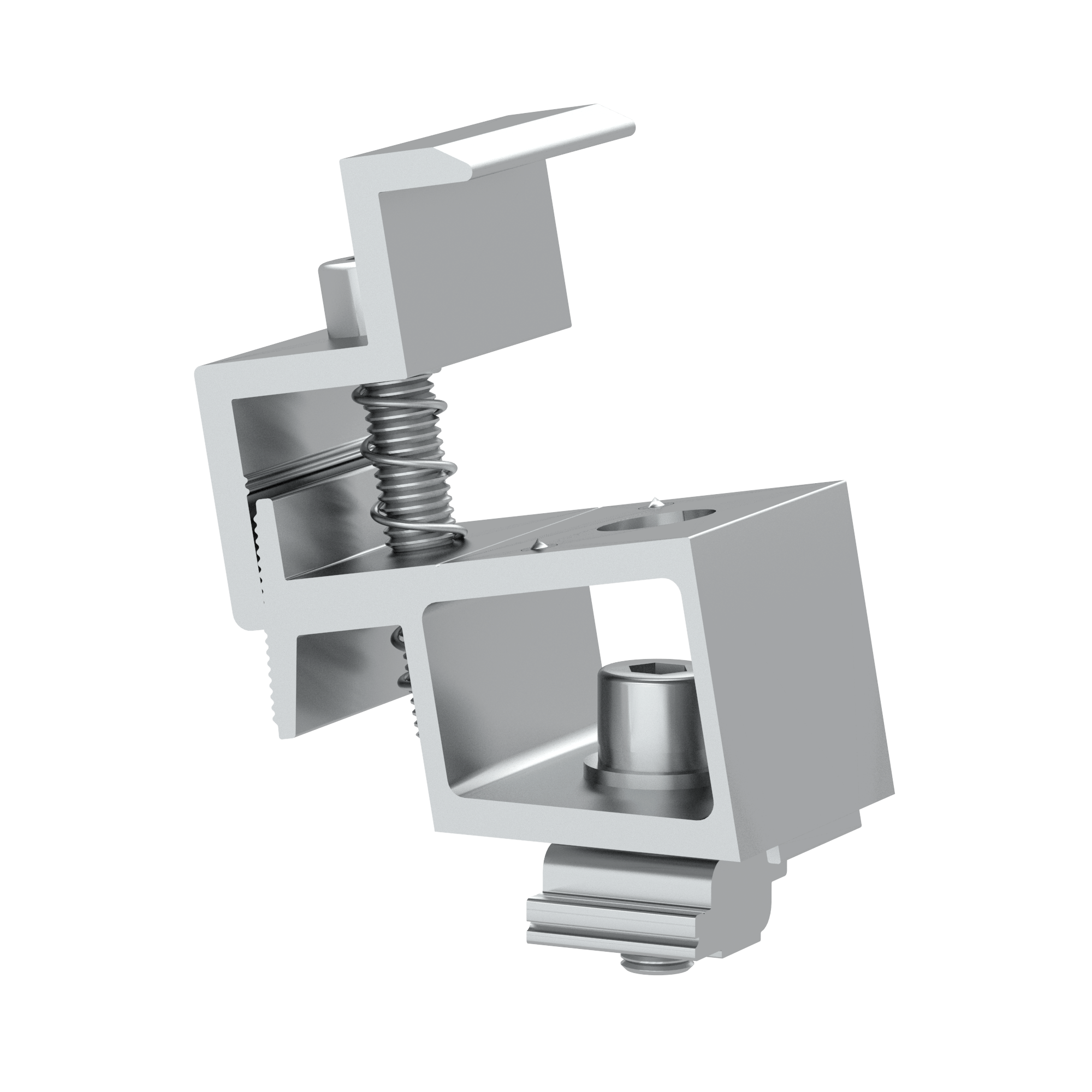

Front Leg Assembly, 10°, with Z-Module and Grounding Pins
FL-COMT/Z/G/10V2

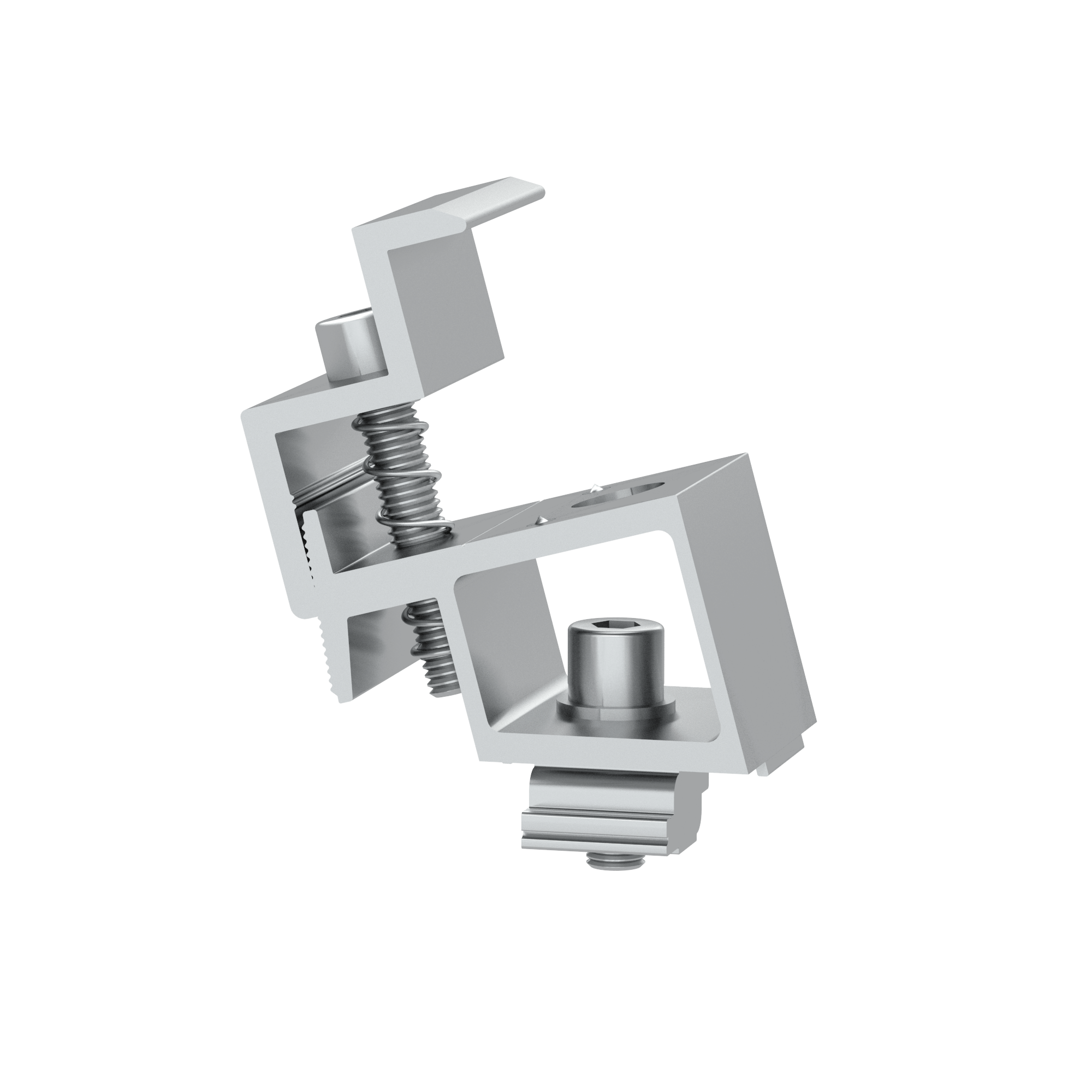

Front Leg Assembly, 15°, with Z-Module and Grounding Pins
FL-COMT/Z/G/15

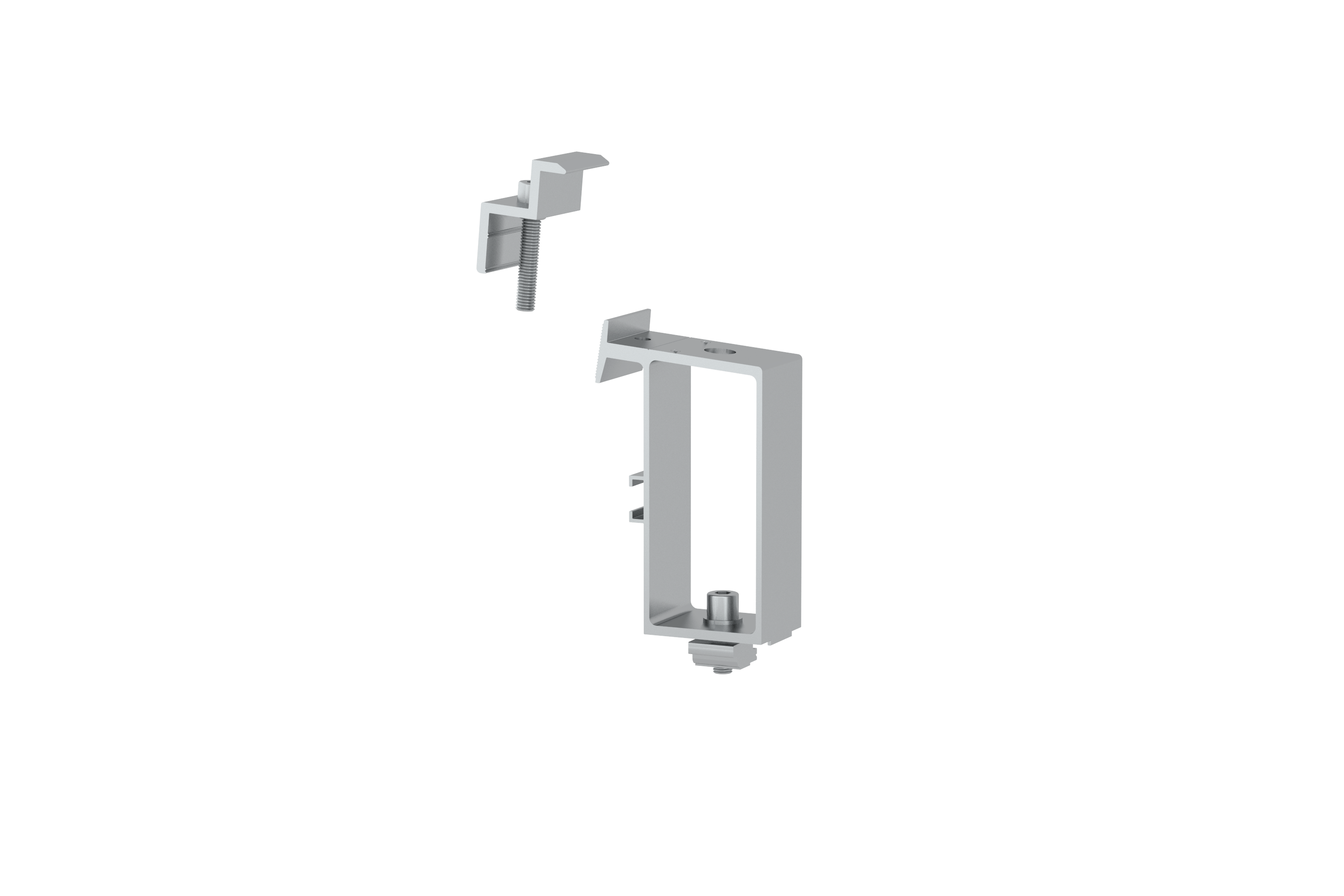

Rear Leg Assembly, 5°, with Z-Module and Grounding Pins
RL-COMT/Z/G/5

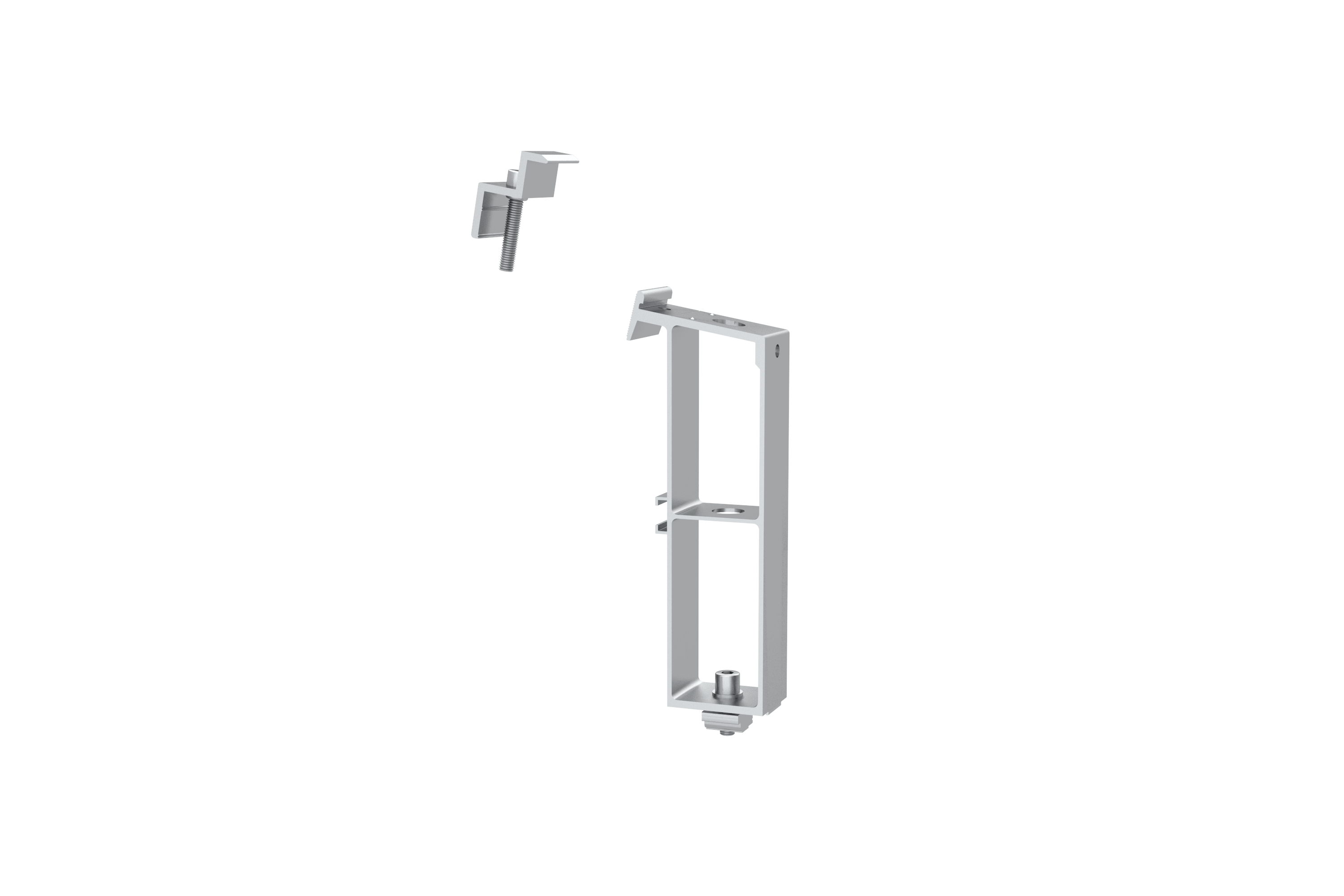

Rear Leg Assembly, 10°, with Z-Module and Grounding Pins
RL-COMT/Z/G/10V2

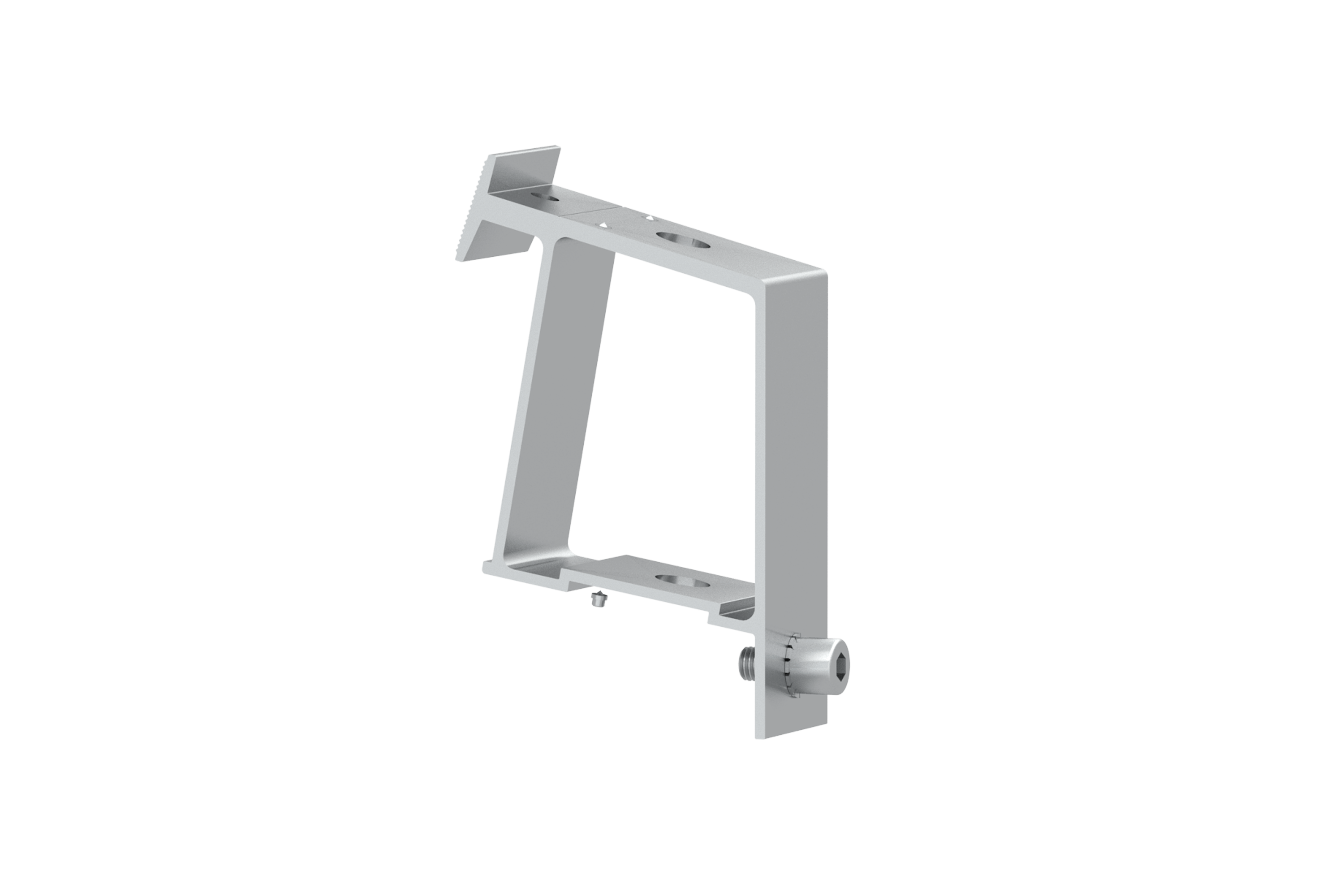

Rear Leg Extender, 15°, with Grounding Pins
RL-E-COMT/G/15
Rail Clamp for T-Rail, with Diamond Module
ER-RC-T/DM
MT-Rail Support
S-MT/240
ECO Rail
ER-R-ECO

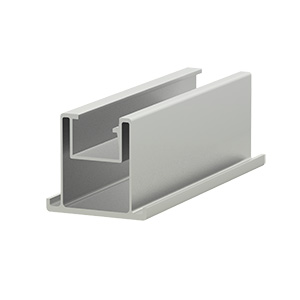

T50 Rail
ER-R-T50

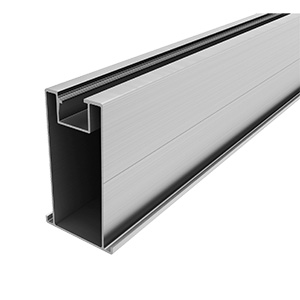

T110 Rail
ER-R-T110
Tin Interface
ER-I-05
Tin Interface with Click Module
ER-I-05/CM
Tin Interface A with ezClick Connection
ER-I-05A/EZC/ECO
Tin Interface with Curved Base for Corrugated Roof
ER-I-25
Adapter (Puck) for Corrugated Iron Roof
EZ-AD-C43
Accessories
Grounding Lug
EZ-GL-ST
Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape
EZ-CC-PV/2/L

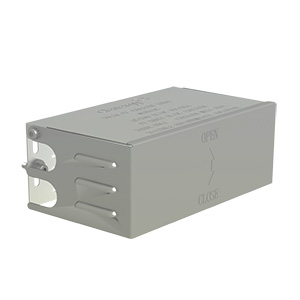

Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly
IS-SR265/111
Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly, Black Anodized
IS-SR265/111/B
Angle Bracket for Isolator Shade, 260 mm Length
AB-SR/IS/260
Angle Bracket for Isolator Shade, 260 mm Length, Black Anodized
AB-SR/IS/260B
MT-Rail Cable Tray, 40*40*2560 mm
EZ-CT-40/40/2560
Cover for MT-Rail Cable Tray, length 855mm
CO-MT/855
Side Channel Cover for Cutter-Rail, length 380 mm
SCO-ECO/380
