PV-ezRack®/MOUNTING SYSTEM/Roof Series/Flat Roof/ComT
ComT
Tilt Mounting System for PV Installation on Residential or Commercial Flat Tin Roofs
Built To Last
The Clenergy PV-ezRack ComT is a universal and fast mounting system for PV installation on all common commercial tin roofs. With its flexible and scalable design, it enables perfect utilisation of roof surface available.
Available Tilt Angles
- 10°
Available Orientations
- North facing
- South facing
- East-West facing

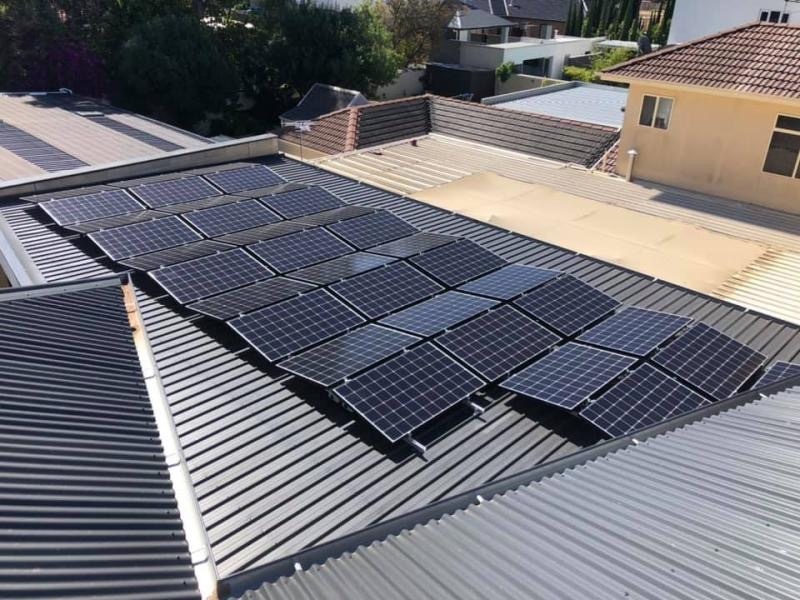

Image Courtesy: GB Electrical & Solar
Compatibility
With the ComT system the PV panels can generate their maximum output.
It is a universal and fast mounting system for PV installation for all common commercial tin roofs, and one can do so using the Clenergy universal klip-lok clamp.
You can use different rails and clamps to fasten the solution to the flat tin roof. Watch the videos to see install examples.

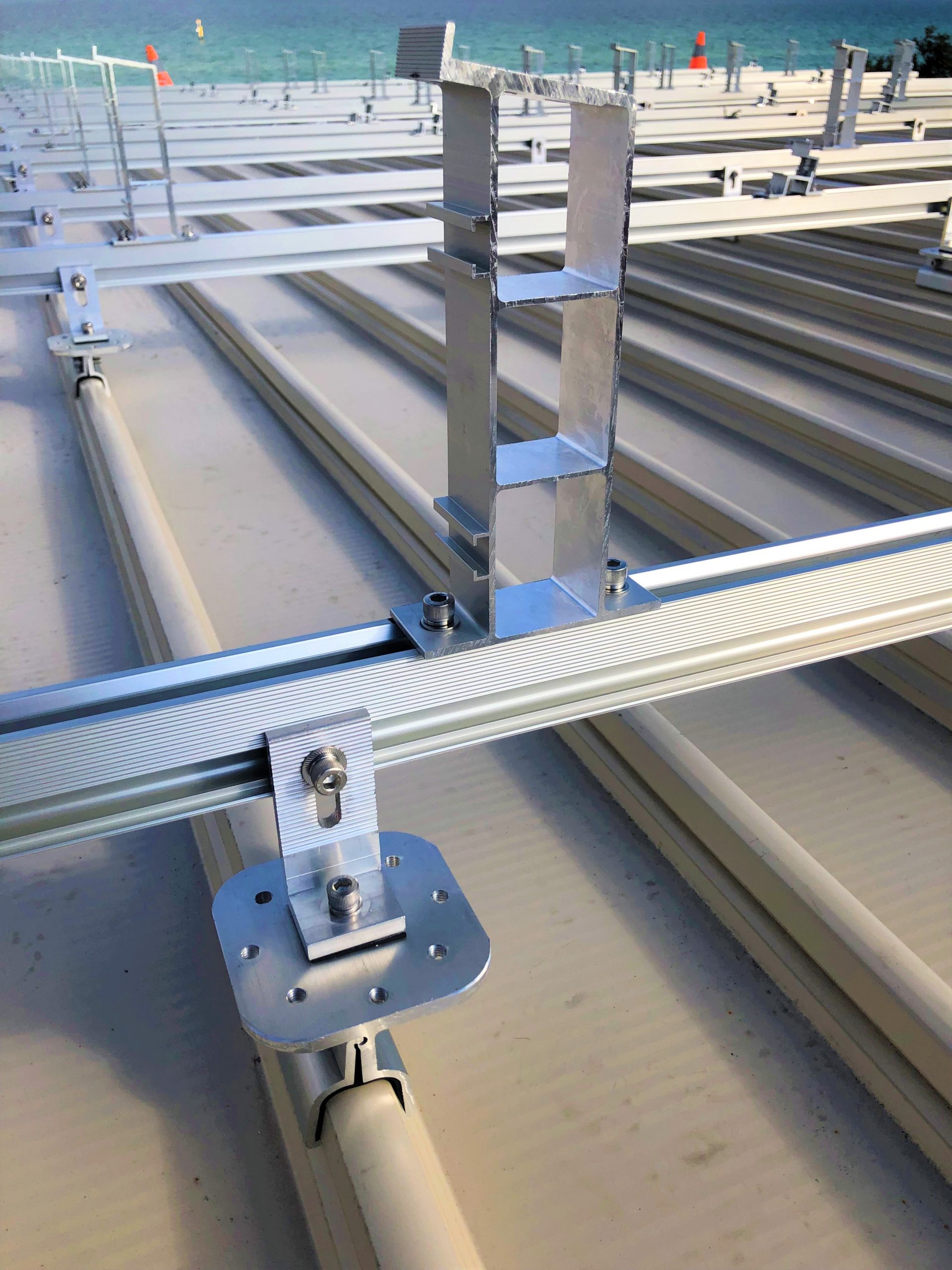

Image Courtesy: RACV Solar
Product Details |
Customised |
|
Product Details |
Key Benefits
Easy and Quick Installation
Pre-assembled legs enable easy and fast installation | Patented Z-Module, the legs can easily click into the slot of rails at any given point.
Optimised Energy Output
Legs can mount PV panels with width up to 1046mm, such as 72-cell or new half-cut cell panels | 3 x Tilt angles
Two Optional Solutions

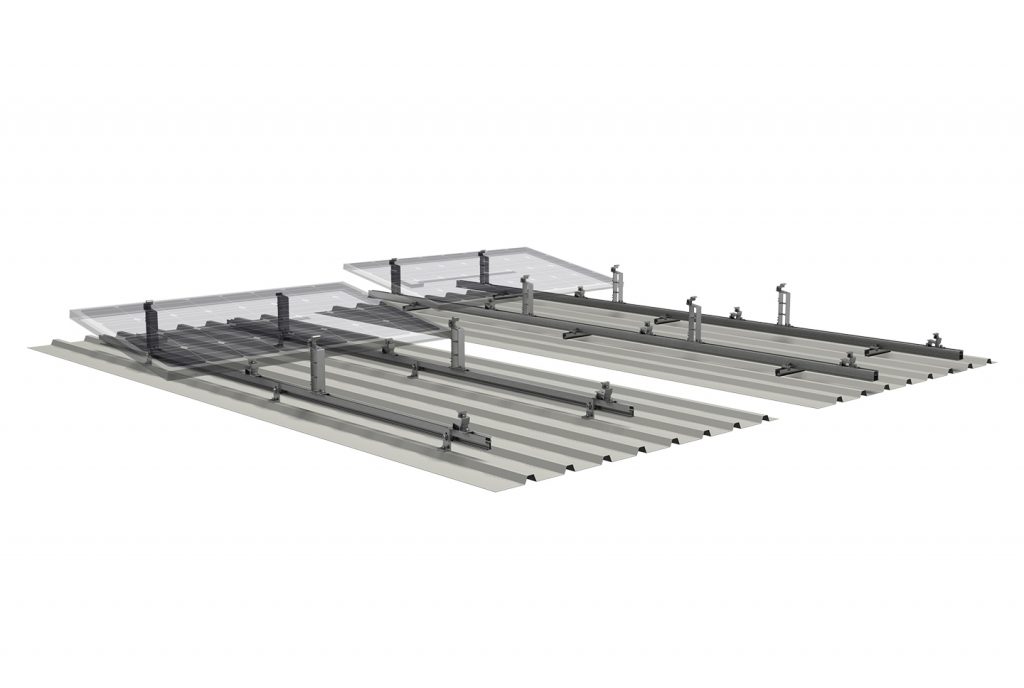

The solution using MT Rail in conjunction with T-Rails and Legs is specially developed for tin roofs with a large purlin span of up to 2m. And the other one using our popular L-feet, ECO Rails and new Legs offers flexible height adjustable range.
Universal Kliplok Clamps
The adjustable clamps can mount PV panels that range from 30 to 46 mm (height) | Frameless clamps > Clenergy Commercial Tilt can mount every size of frame-less or thin film panels.
Videos
Supply partner review Clenergy ComT System
Prana Energy review Clenergy ComT
Clenergy & Canadian Solar Collab
How to Install Clenergy ComT
Install PV-ezRack ComT Solar Roof Mounting System
Downloads
Search result: documents found
| Clenergy PVezRack ECO Rail Datasheet | Download |
| Clenergy PVezRack SolarRoof Tin Interface Assembly Datasheet | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy Pvezrack Product Catalogue Australia | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy Kit for SolarRoof with ECO-Rails with Akashi Clamp 30-46mm Datasheet | Download |
| Clenergy PVezRack Grounding Lug Packed in Biodegradable Bag Datasheet | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| Clenergy PVezRack Klip-Lok ComT Installation Guide | Download |
| Clenergy PVezRack ComT 10° Front and Rear Legs Datasheet | Download |
| Clenergy PVezRack Grounding System Installation Guide (Australia & New Zealand) | Download |
| PVezRack SolarRoof using ChemSet Anchor Stud Installation Guide | Download |
| Clenergy PVezRack ECO Rails Black Anodised Datasheet | Download |
| Side Channel Cover for Cutter-Rail Datasheet | Download |
| MT-Rail Cable Tray Cover Datasheet | Download |
| MT-Rail Cable Tray Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| Grounding Lug Datasheet | Download |
| ComT Installation Guide | Download |
| ComT Brochure | Download |
| Clenergy PVezRack ECO Rail Datasheet | Download |
| Clenergy PVezRack SolarRoof Tin Interface Assembly Datasheet | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy Pvezrack Product Catalogue Australia | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy Kit for SolarRoof with ECO-Rails with Akashi Clamp 30-46mm Datasheet | Download |
| Clenergy PVezRack Grounding Lug Packed in Biodegradable Bag Datasheet | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| Clenergy PVezRack Klip-Lok ComT Installation Guide | Download |
| Clenergy PVezRack ComT 10° Front and Rear Legs Datasheet | Download |
| Clenergy PVezRack Grounding System Installation Guide (Australia & New Zealand) | Download |
| PVezRack SolarRoof using ChemSet Anchor Stud Installation Guide | Download |
| Clenergy PVezRack ECO Rails Black Anodised Datasheet | Download |
| Side Channel Cover for Cutter-Rail Datasheet | Download |
| MT-Rail Cable Tray Cover Datasheet | Download |
| MT-Rail Cable Tray Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| Grounding Lug Datasheet | Download |
| ComT Installation Guide | Download |
| ComT Brochure | Download |
| ComT Brochure | Download |
| Clenergy Pvezrack Product Catalogue Australia | Download |
| Clenergy PVezRack ECO Rail Datasheet | Download |
| Clenergy PVezRack SolarRoof Tin Interface Assembly Datasheet | Download |
| Clenergy-PV-ezRack, Zano End Clamp and Inter Clamp 28-42 mm, Length 50 mm datasheet | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm, Black Anodised V1.0 | Download |
| Clenergy-SolarRoof Kits for 6 panels with Akashi Clamp 30-46 mm | Download |
| Clenergy Kit for SolarRoof Tin Roof with ECO-Rails with Akashi Clamp 30-46mm, Black Anodized Datasheet | Download |
| Clenergy Kit for SolarRoof with ECO-Rails with Akashi Clamp 30-46mm Datasheet | Download |
| Clenergy PVezRack Grounding Lug Packed in Biodegradable Bag Datasheet | Download |
| Clenergy PVezRack The Austin Commercial Lug datasheet | Download |
| Inter and End Clamp Standard Datasheet | Download |
| Inter Clamp Standard 30 and 35mm with Grounding Pins Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade Side Plate Datasheet | Download |
| Clenergy PVezRack ComT 10° Front and Rear Legs Datasheet | Download |
| Clenergy PVezRack ECO Rails Black Anodised Datasheet | Download |
| Side Channel Cover for Cutter-Rail Datasheet | Download |
| MT-Rail Cable Tray Cover Datasheet | Download |
| MT-Rail Cable Tray Datasheet | Download |
| Cable Clip Datasheet (Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape) | Download |
| Grounding Lug Datasheet | Download |
| Clenergy PVezRack SolarRoof Isolator Shade with Side Plates Installation Guide | Download |
| Clenergy PVezRack Klip-Lok ComT Installation Guide | Download |
| Clenergy PVezRack Grounding System Installation Guide (Australia & New Zealand) | Download |
| PVezRack SolarRoof using ChemSet Anchor Stud Installation Guide | Download |
| ComT Installation Guide | Download |
| Clenergy PVezRack – 25 Years Product Warranty | Download |
Components
Front Leg Assembly, 10°, with Z-Module and Grounding Pins
FL-COMT/Z/G/10
Rear Leg Assembly, 10°, with Z-Module and Grounding Pins
RL-COMT/Z/G/10
Rail Clamp for T-Rail, with Diamond Module
ER-RC-T/DM
MT-Rail Support
S-MT/240
ECO Rail
ER-R-ECO
T50 Rail
ER-R-T50
T110 Rail
ER-R-T110
Tin Interface
ER-I-05
Tin Interface with Click Module
ER-I-05/CM
Tin Interface A with ezClick Connection
ER-I-05A/EZC/ECO
Tin Interface with Curved Base for Corrugated Roof
ER-I-25
Adapter (Puck) for Corrugated Iron Roof
EZ-AD-C43
Accessories
Grounding Lug
EZ-GL-ST
Universal Cable Clip for PV Panels for Holding 2 Cables, Landscape
EZ-CC-PV/2/L
Universal Cable Clip for PV Panels for Holding 4 Cables, Landscape
EZ-CC-PV/4/L
Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly
IS-SR265/111
Solar Roof Isolator Shade, 280*158*114mm with Z-Module and bolt, non-assembly, Black Anodized
IS-SR265/111/B
Angle Bracket for Isolator Shade, 260 mm Length
AB-SR/IS/260
Angle Bracket for Isolator Shade, 260 mm Length, Black Anodized
AB-SR/IS/260B
MT-Rail Cable Tray, 40*40*2560 mm
EZ-CT-40/40/2560
Cover for MT-Rail Cable Tray, length 855mm
CO-MT/855
Side Channel Cover for Cutter-Rail, length 380 mm
SCO-ECO/380
