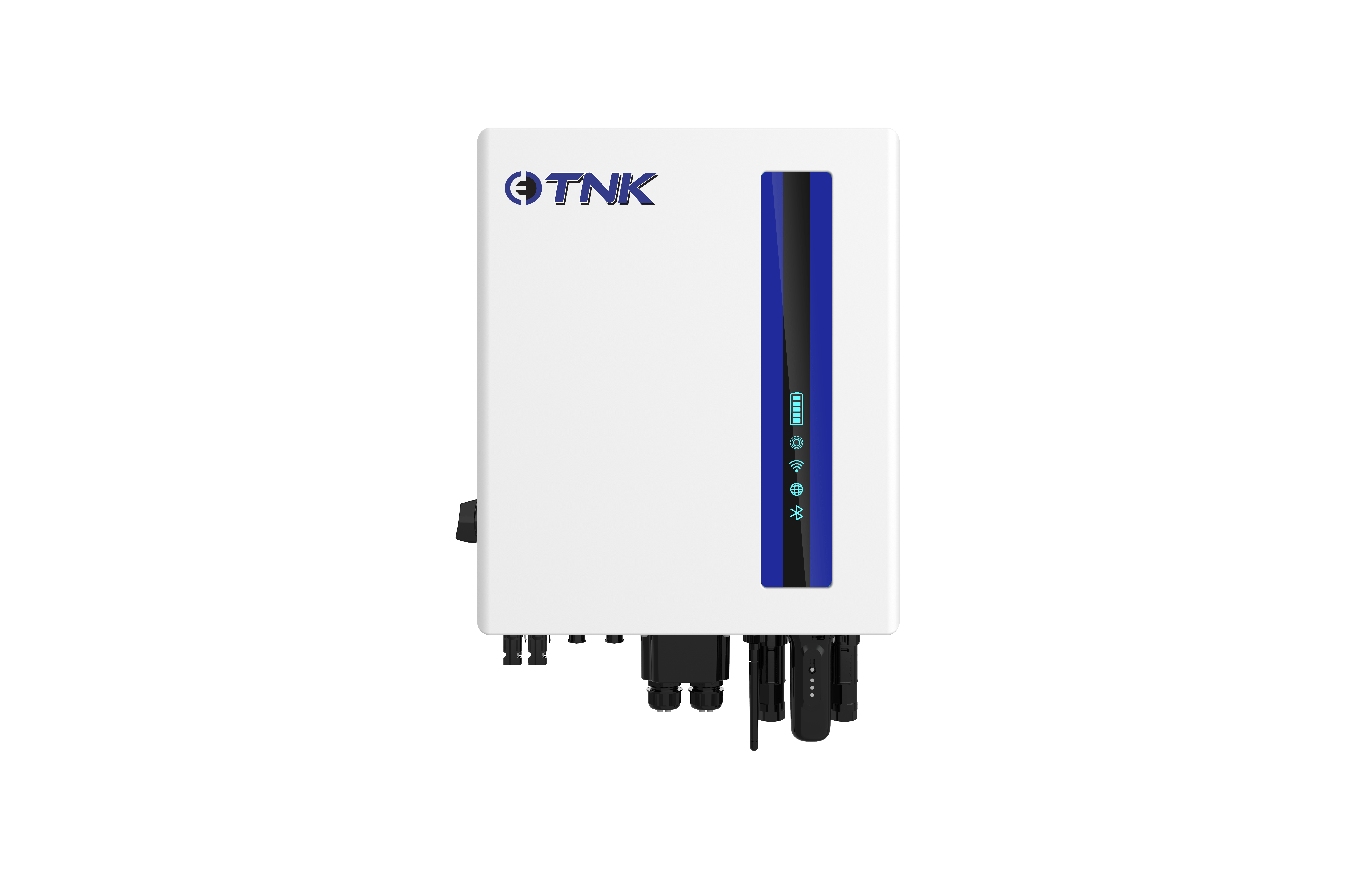

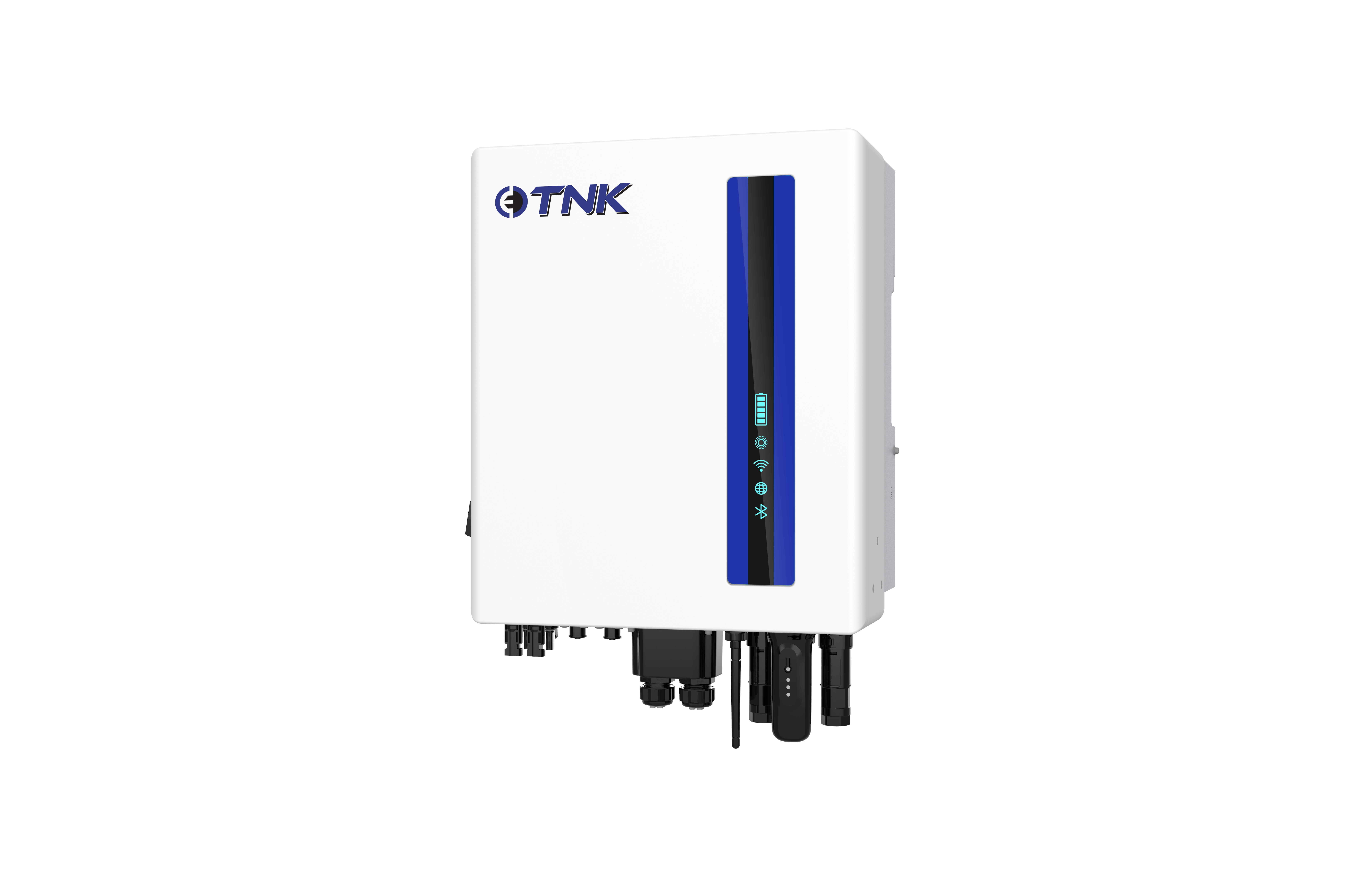

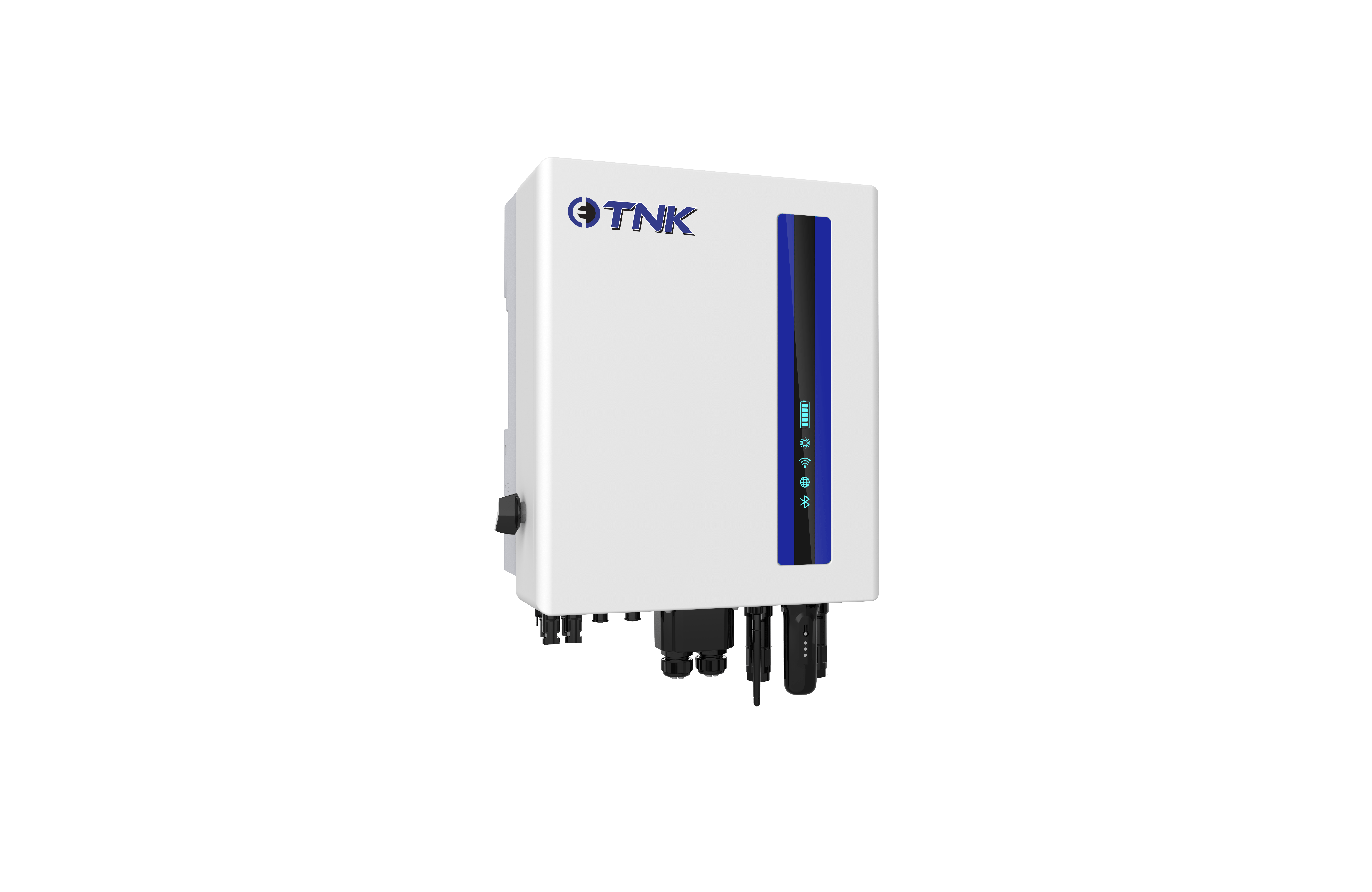

TNK PV 5/6kW

hybrid inverter provides energy security and independence for your home when coupled with the TNK LV10 battery.

Its ability to accept 160% oversizing of your PV array gives you greater flexibility in system design, allowing you to charge the battery while still supplying power to your home.

TNK PV hybrid inverter is built to the high standards for which Clenergy is known, giving you peace of mind that your energy needs will be taken care of for years to come. With a 10-year warranty and full local support in Australia, you can be confident in your investment.

DC InputMax PV8000w
MPPT Strings2 + 2
MPPT Short Circ.24 A / 24 A
Startup Voltage90 V
Basic InfoRated Grid Voltage220 V / 230 V (Single Phase)
Weight24.2kg
Dimensions (W*H*D)405*480*205mm
IP RatingIP66
Inbuilt EPSRated Power: 5kW Max: 7kVa (60Sec)
Warranty10 Year

Product Details

Product Details

Key Benefits

Simplified Installation Process

Market-tested mounting system for easy installation / MC4 connectors with reverse-polarity protection /Efficient commissioning process through the APP

Reliable

IP66-rated suitable for indoor and outdoor installation / 10-year product warranty / Integrated blackout protection with in-built EPS

User-friendly Monitoring System

Wi-Fi connectivity included / Live monitoring of system through the APP - Consumption meter included

Real-time Control

APP with real-time control allows installers to; - adjust AC output limits for local regulatory compliance - manage self-consumption, selling to the grid, and charging the battery
