PV-ezRack®

Fuse Box (TH Website only)

The Most Effective Ground Mount Solution for Large Scale Projects

Unique system

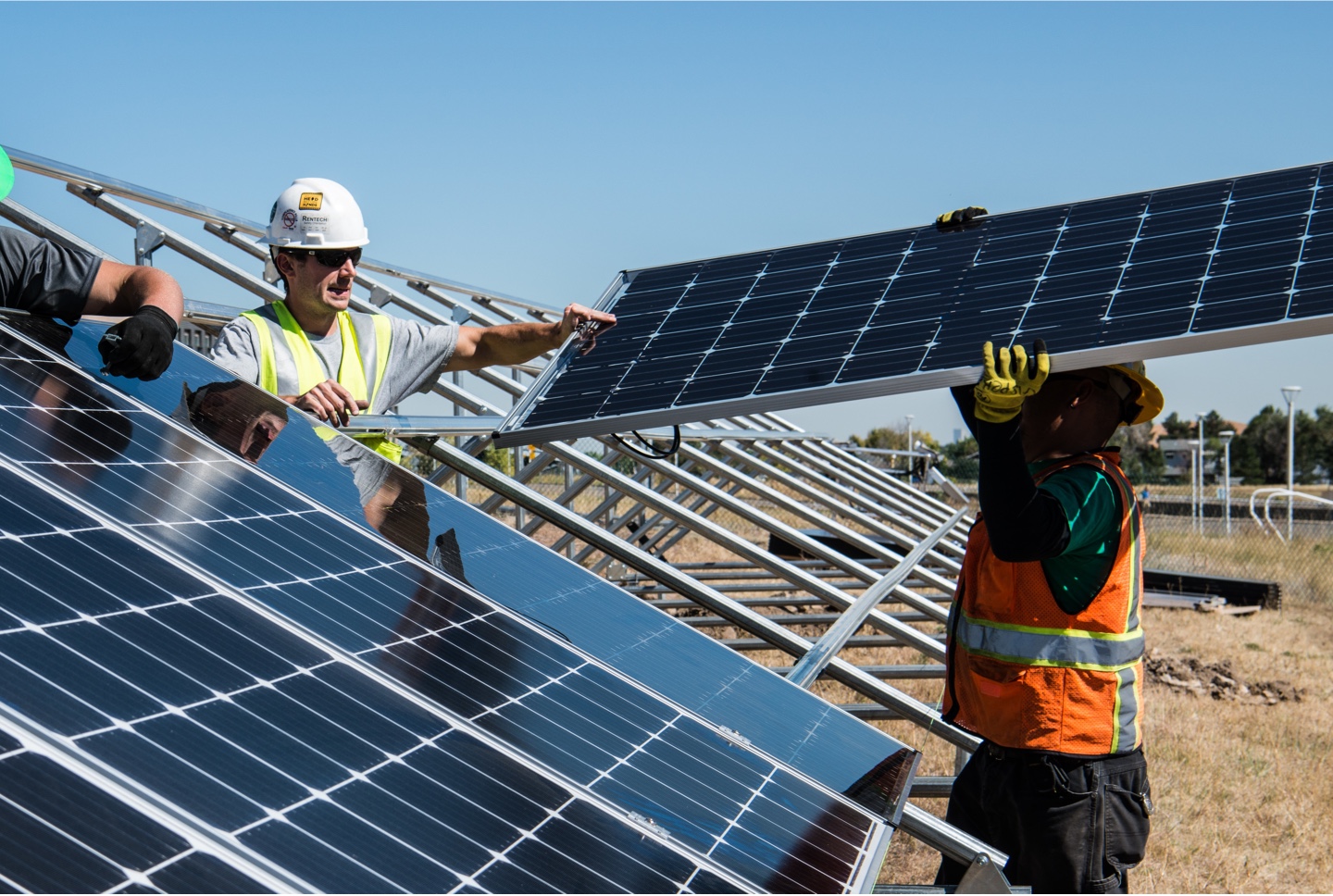

PV-ezRack® SolarTerrace II™ is a pre-assembled ground mount system suitable for commercial and utility scale installations. By using a smart, patented design and high quality components, PV-ezRack SolarTerrace II saves developers, operators and installers time and money when delivering large scale projects.

The product is mainly manufactured out from anodised structural grade aluminium and it is suitable for installations also on uneven ground.

Universal pre-assembled

This unique system is manufactured from structural grade, anodised aluminium and with stainless steel fasteners to withstand the harshest environmental conditions. Furthermore it delivers exceptional value per watt installed and provides a strong and sturdy structure that is suitable for use in high wind and snow load environments.

PV-ezRack® SolarTerrace III™ is a universal pre-assembled ground mount system for sites where ramming is not feasible. It is suitable for nearly all PV panels including thin-film modules.

Product Details

Product Details

Key Benefits

Easy Installation

Driven pole technology and the pre-assembled components reduce the construction lead time and labour costs of large scale projects.

Good Compatibility

Designed as a universal mounting system, PV-ezRack SolarTerrace II is compatible with most of the major framed and frameless PV panels on the market.

Versatile Application

SolarTerrace II can be applied to meet various engineering requirements. Posts are available with a wide range of in-field adjustability from 5-30 degrees

Excellent Adaptability

With high quality steel (with robust surfacing system) and with anodised aluminium components SolarTerrace II can be deployed in harsh environments.

Assembly Flexibility

The wide range of horizontal and vertical adjustability of the post head can balance out the dislocation of the rammed posts.

Cost Reduction

The components’ design and pre-assembled nature trimmed to optimum balance of structural reliability and cost reduction in manufacturing as well as quick installation, saving you on component and labour costs.

10 Year Warranty

Clenergy provides a 10 year product warranty for your peace of mind.

High Quality

Strict ISO 9001 based quality control over materials and finished products ensure optimum strength and long life for your installation.

Videos

Universal Clamp with ECO Rail

SR Installation Video-Commercial & Industrial Project

SR Installation Video-Residential Project

Universal Clamp with ECO Rail

Universal Clamp with ECO Rail

Universal Clamp with ECO Rail

Downloads

Search result: documents found

Components

End Clamp, Standard

ER-EC-ST

End Clamp, Dual 35 or 40mm

ER-EC-DU35/40

End Clamp, Dual 40 or 46mm

ER-EC-DU40/46

Inter Clamp, Standard

ER-IC-ST

Universal Clamp for Frame Height 30-46mm

C-U/30/46

Universal Clamp for Frame Height 30-46mm with Grounding Clip

C-U/30/46-G

Tin Interface

ER-I-05

Tin Interface A with ezClick connection for ECO-Rail

Art number: ER-I-05A/EZC/ECO

Accessories

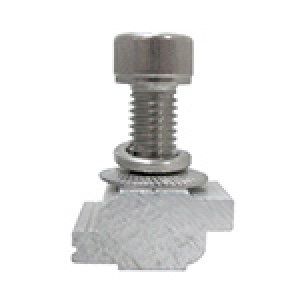

ER-Z-STBW Z-Module assembly with bolt and washer

Z-Module, M8x25 (5/16”x 1”) A2 70
Washer 8.4 (5/16”) DIN 9021 A2
Lock Washer 8 (5/16”) A2

EZ-IB-SR240/100 Isolator Bracket

Isolator Bracket | Hexagon Socket Head Bolt
Z-Module | Spring Washer
Flat Washer | M8x25
L20 | M8

EZ-GC-ST PV-ezRack Grounding Clamp (standard)

Grounding Clip suitable for ER-R-ST, ER-R-T, ER-R-PRO, Trapezoidal Interface, SolarTerrace II and III girder

CO-IB/240/100 Cover for Isolator Bracket

EZ-GL-ST PV-ezRack Grounding Lug (standard)

Grounding Lug | Hexagon Socket Head Bolt
Z-Module | Spring Washer
Flat Washer | Grounding Lug Bold
L25 | M8x25 | L20
M8.4 | M6x14

CO-IBII/240/100 Cover for Isolator Bracket II
